Trundle Bed Unit

IF YOU ARE BUILDING A BED, OR A BUILT IN WITH A BED ON TOP AND A TRUNDLE MECHANISM UNDERNEATH,
MAKE THE TOP UNIT A “LONG TWIN “. THEN, THE TRUNDLE CAN BE SIZED FOR A REGULAR TWIN MATTRESS BELOW.
IT BROADENS YOUR OPTIONS IMMENSELY. IF THE TOP UNIT IS A REGULAR TWIN, YOU WILL HAVE TO HAVE A
SMALLER MATTRESS MADE, OR USE A FUTON IN THE TRUNDLE.

We have evolved our Trundle Bed, and the trundle unit to the point that we can feel safe
in offering the trundle unit alone for the customer to mount on their bed project or built in unit.
We stand behind the construction and the quality of the hardware.
There are cheaper ways to do this ....THERE ARE NOT BETTER WAYS.... The glides we supply are used on Fire Trucks, Ambulances, Service Trucks, and Museum Storage Drawers. They have a 500 lb rating, and are massive.
They are also expensive.
No matter, they do the job with a huge margin of SAFETY.
They are all ball bearing, and smooth operating, full extension glides.

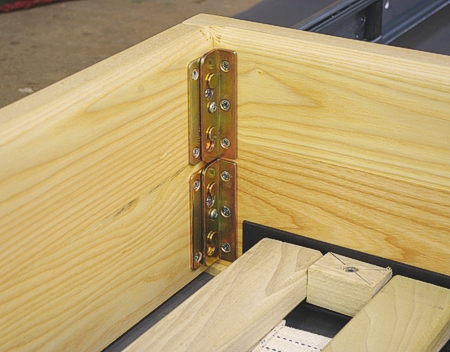

We have added additional hardware, beyond the minimum called for, to guarantee strength, durability, and stability.
The mechanism raises the trundle unit OFF OF THE FLOOR after about 12" of retraction.
There are no rollers or wheels to cut long grooves in your carpet or mark your wood floors.
The unit lifts, and the huge glides slide effortlessly to tuck the trundle unit below the top bed, and off of the floor.
These are lifetime units.

These units cannot be "stocked" by us. EACH UNIT SOLD HAS TO BE CUSTOM MADE TO YOUR EXACT SPACE REQUIREMENTS. Most usually, they are done in the Twin Bed format. However, we can build these units up to a size that will allow for a Full, or even a Queen sized Trundle. Never having built one that large, we are unsure of the application....BUT, we are confident that if you need a unit that size, we can build it.

If you are building a bed or built in that will require a trundle unit, contact us as soon as possible in the planning stage so that the core requirements can be outlined. Obviously, there is a need for strength and stability where the trundle glides attach to the existing structure. We can offer guidelines that will make the fitting and use as easy as possible. We supply all necessary hardware to facilitate installation, and detailed, step-by-step instructions to guide you through the process.

We can make the trundle units almost any size…..up to Queen bed width and length.
When fully assembled, they become VERY solid units.

The full-extension glides are rated at 500 lbs/pair.
They are used on Museum Drawers, Service Trucks, Ambulances, and Fire Trucks to hold heavy gear, yet open effortlessly.

We supply detailed instructions. All the components are numbered for easy assembly.

We could get away with one set of hardware….NOT our style, we double the hardware for a long, trouble free life.

The rollers contact the floor on about the last 12” of extension.
The slight ascending mount of the glides allows the rollers to lift off the floor as the unit is closed. NO long grooves or marks on the floor. BUT….when fully extended, the rollers add an additional 500 lbs of load carrying strength to the unit.
HEAVY DUTY, and double safe throughout.

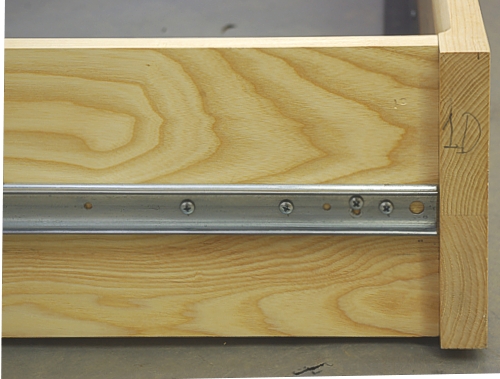

Multiple mounting screws on both the trundle, and the opposite side that mounts to your woodwork. It is easily asjusted.

LOOK AT HOW MUCH THE GLIDE EXTENDS PAST THE SIDE OF THE UNIT…..less than 1/8”.
That is all the clearance we need to allow smooth, effortless opening and closing.

Trundle Bed Unit
CODE	DESCRIPTION	PRICE
TBU	Trundle Bed Unit	Please read below.
We get MANY requests for the trundle units. I am going to list these prices to avoid further misunderstanding. These are superbly crafted units that have 20 years of experience built into them. They will function properly for decades, even with daily use. WE CANNOT BUILD THEM CHEAPLY....CHEAPER....OR TELL YOU WHERE TO GET THE PARTS. Without our experience, we are not going to participate in, or invite disaster. These prices are subject to modification with each individual custom unit......ready to assemble and install Twin Bed mattress........$1800. plus freight .....fits under a Long Twin above Full/Double Bed mattress...........$2350. plus freight ....... fits under a Queen above Queen Bed mattress........... $2550. plus freight ......... fits under a King above NO KING All units can be built-in under platforms or window surrounds with seating above. All pricing is conditional on final construction of the unit.

LOOK......LOOK......PLEASE READ.....THIS IS AN IMPORTANT CAUTION.
We include several cautions with each unit....THIS IS THE MOST IMPORTANT, AND ENTIRELY YOUR RESPONSIBILITY.
IF ONE DOES SOME VERY CLEVER AND QUALITY CABINETWORK ON THE FACE OF THIS ASSEMBLY. ONE CAN ALMOST COMPLETELY CONCEAL ITS PRESENCE WITH WOODWORK RESEMBLING THE REST OF THE ROOM......A WARNING. WITH THE DESIRE TO HAVE CLOSE TOLERANCES BETWEEN THE FIXED PART OF THE STRUCTURE, AND THE SLIDING PART.....ONE CAN CREATE A PERFECT FINGER GUILLOTINE. AN OVERENTHUSIASTIC CHILD CAN GET AN INCREASING VELOCITY PUSH GOING...THE GLIDES ARE SMOOOOOOTH........ AND IF THEIR FINGERS ARE HOOKED OVER AN EDGE THAT MEETS A CLOSELY FITTING MATING SURFACE......THE RESULTS ARE TERRIBLE, IF NOT DISASTROUS.

As noted, we have the unit built so that it lifts off the floor as soon as it is being retracted.
When it is pulled out fully, it is in good contact with the floor.
This allows the unit to have the support of the glides,and the rollers, all four corners
THE DESCRIPTION IN THE GLIDE LITERATURE STATES UNEQUIVOCALLY...
" THESE ARE NOT INTENDED TO BE USED TO SUPPORT A PERSON'S WEIGHT"
That is their legal disclaimer to avoid liability. We, however, are NOT using them to support peoples weight.
We support half of the weight of the bed, and occupants, at the extended end with heavy duty casters.
We do not get close to the 500 lb rating of the glides on the back end.
